Wired In

USB Cable Rev. 2.0 - 24/28 (4.5 OD)

USB Cable Rev. 2.0 - 24/28 (4.5 OD)

$1.50
$1.50
Sale Sold out
Shipping calculated at checkout.
Color
SPEC / DIGEST WI-CBL-USB2-45
Type USB Rev. 2.0 raw cable
Gauge 24/28 AWG (GND/D+/D-/VCC)
OD 4.5 mm
Shield Double shielded (braid + foil)
Jacket PVC
Compliance RoHS · sold per foot
View full details
// RAW CABLE · REV 2.0 24/28
Product Description 4 FEATURES

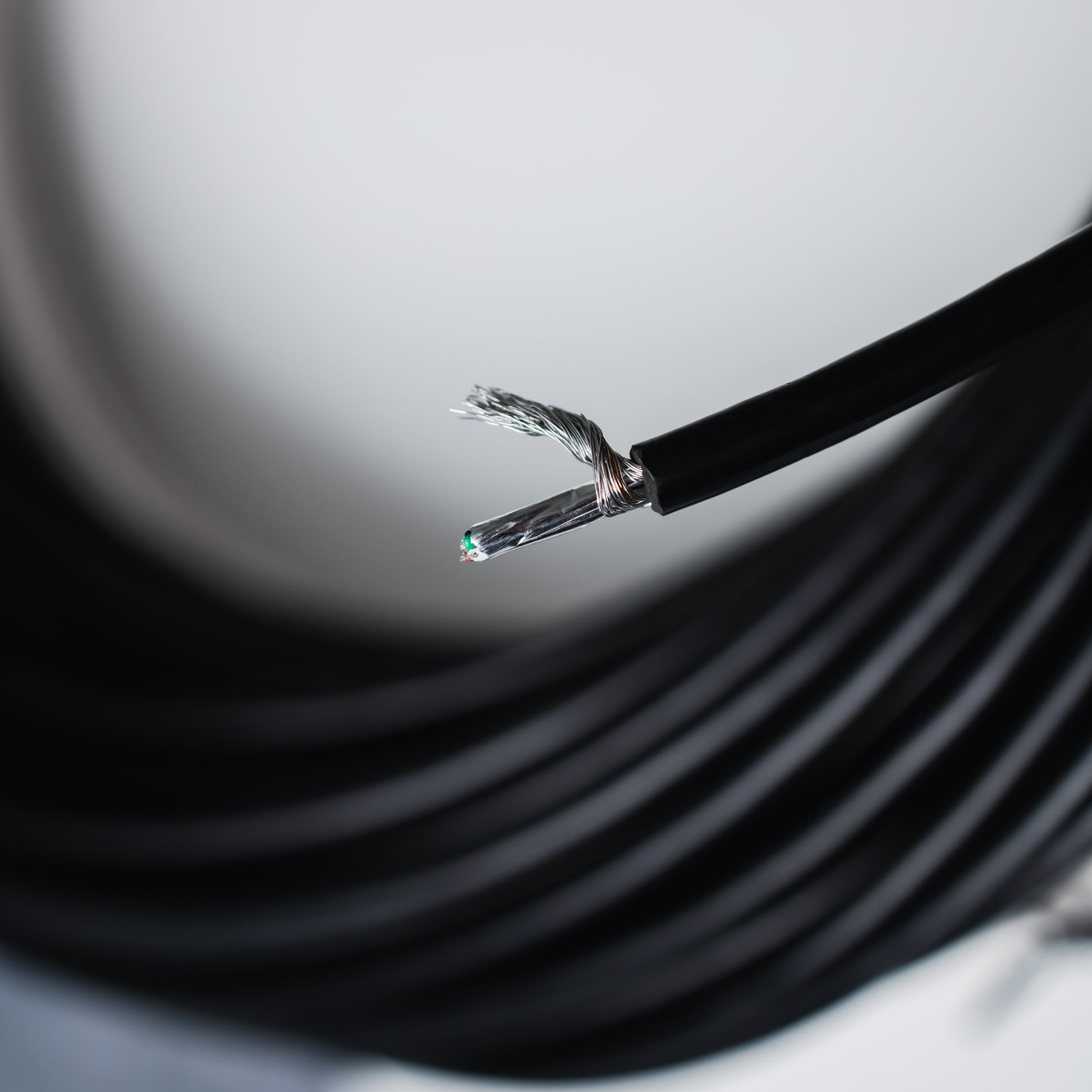

USB 2.0 bulk cable with one pair of 28 AWG data wires and two 24 AWG power conductors, at 4.5 mm OD. Gives a thick single-sleeve look without double sleeving, and less stiff for it. Sold by the foot.
GAUGE

24/28 AWG

28 AWG data pair + 24 AWG power (GND/D+/D-/VCC).

PROFILE

4.5 mm OD

Thick single-sleeve look without double sleeving.

COMPAT

1B LEMO

Compatible with 1B LEMO connectors.

BUILD

Double shielded

Braid + foil shield, PVC jacket, RoHS compliant.

Specifications DATASHEET
SCHEMATIC · NOT TO SCALE CABLE BODY HOST · USB-A DETACHABLE ACCENT NUT DEVICE · USB-C HOST RUN DEVICE LEAD OVERALL
// WIRED INWI-CBL-USB2-45
Type USB Rev. 2.0 raw cable
Gauge 24/28 AWG (GND/D+/D-/VCC)
OD 4.5 mm
Shield Double shielded (braid + foil)
Jacket PVC
Compliance RoHS · sold per foot
●  HOVER A ROW — CALLOUTS ANSWER ON THE DRAWING
